Hardware

A. How to setup Ticket Printer, Kitchen Printer?

B. How to setup Cash Drawer?

C. How to setup Line Display?

D. How to setup Attachment Monitor?

E. How to setup Frozen Yogurt Scale?

A. How to setup Ticket Printer, Kitchen Printer?

Print a test page from Windows OS to make sure the printer is working correctly

Support all printers, brands such as: EPSON, Star Micronics, Bixolon, Citizen, Zebra... with all interface: USB, Serial, Parallel, Ethernet, Bluetooth...
Make sure the printer driver for Windows installed on your PC.

Home Screen => Admin Entry => Settings. Choice Ticket Printer.

Make sure the ticket printer driver installed.

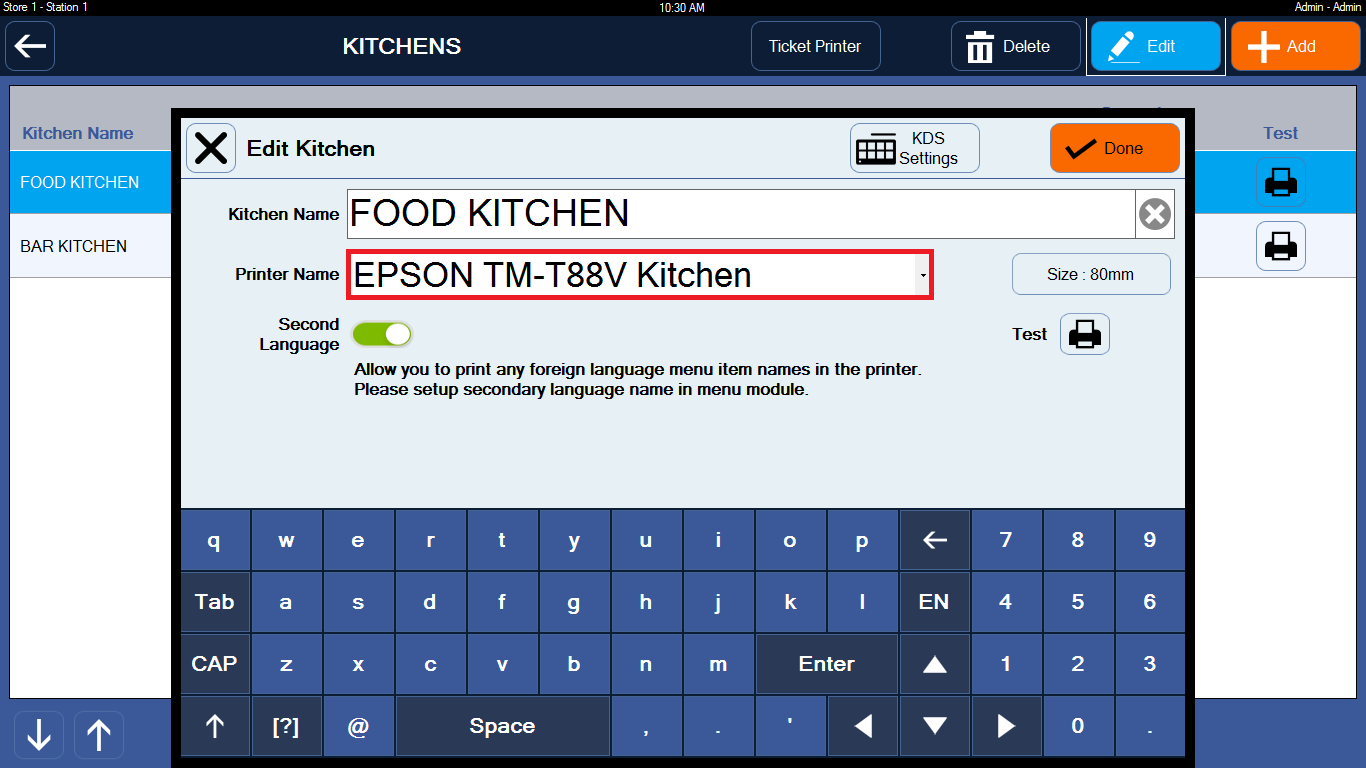

Home Screen => Menu Entry => Kitchens. Choice Add or Edit.

Make sure the kitchen printer driver installed.

Read More...

B. How to setup Cash Drawer

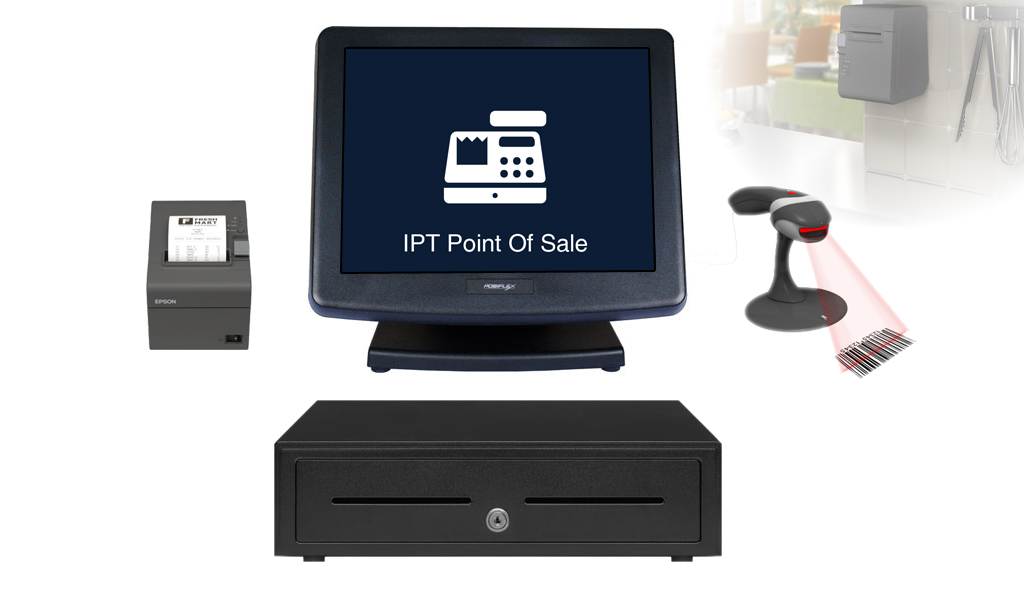

Connect a Cash Drawer to a POS Terminal.

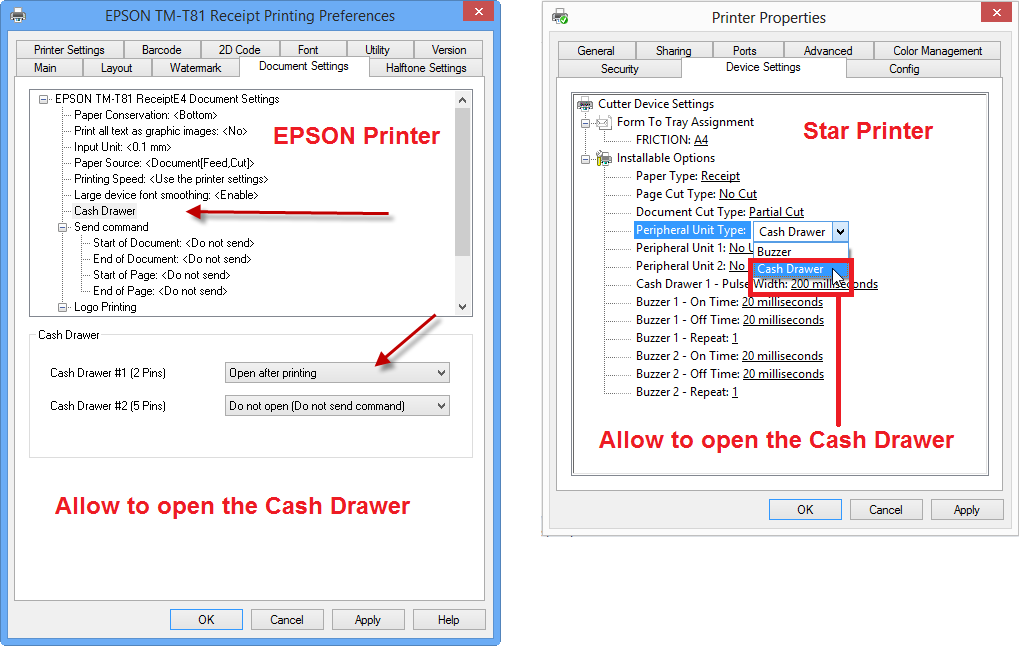

Automatically Open Your Cash Drawer

Epson T82 Cash Drawer Setup

Control Panel => Devices and Printers => Select Your Printer => Printer Properties (Right Click) => (Preferences | Advanced => Printing Defaults ... | Device Settings)

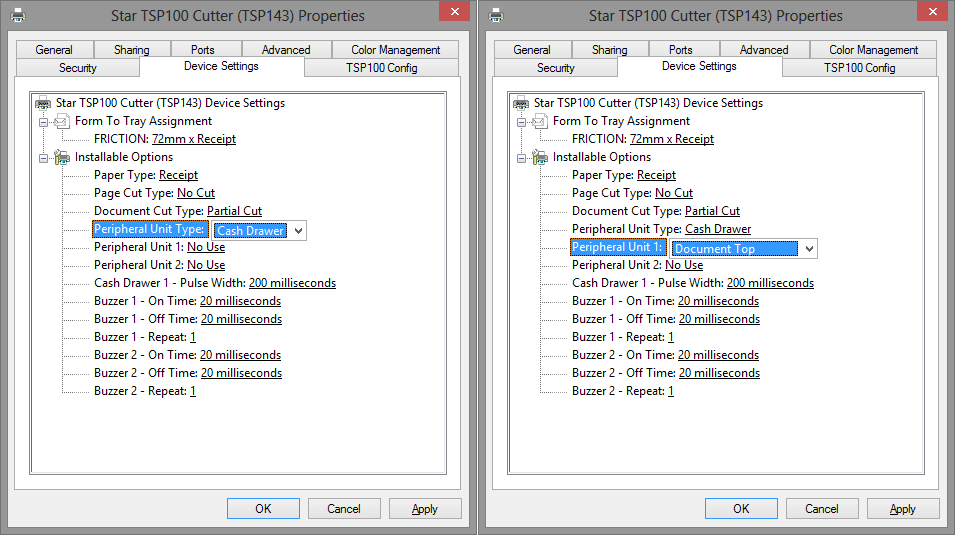

For Star TSP100 Printer

Open Cash Drawer by Code

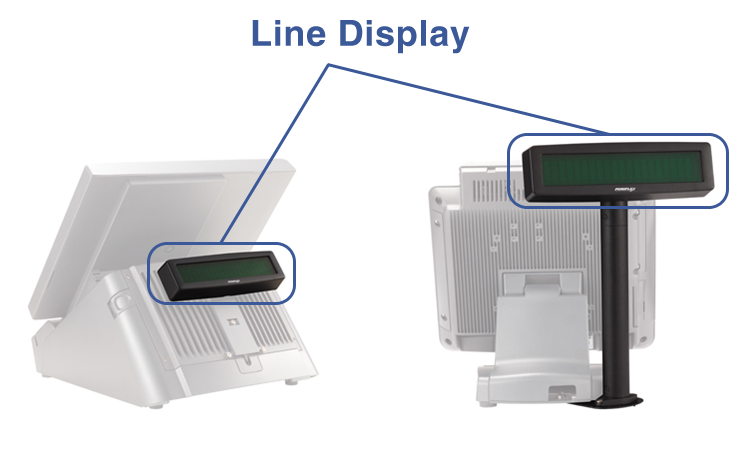

C. How to setup Line Display

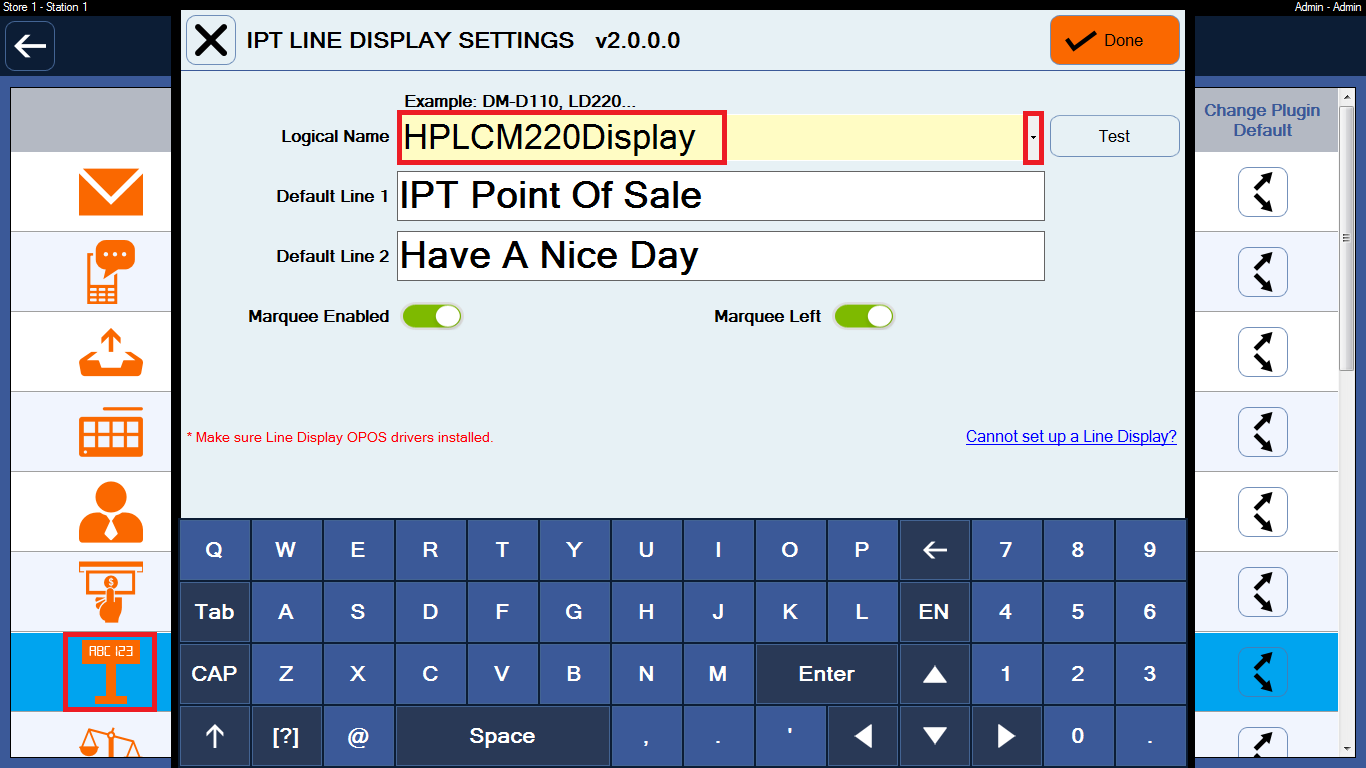

Home Screen => Admin Entry => Plugins Manager => Line Display

Make sure the Line Display OPOS driver installed.

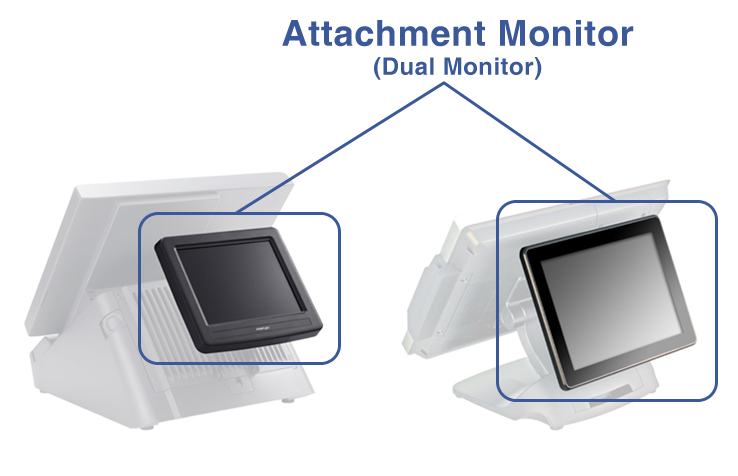

D. How to setup Attachment Monitor

How To Connect Two Monitors To One Computer

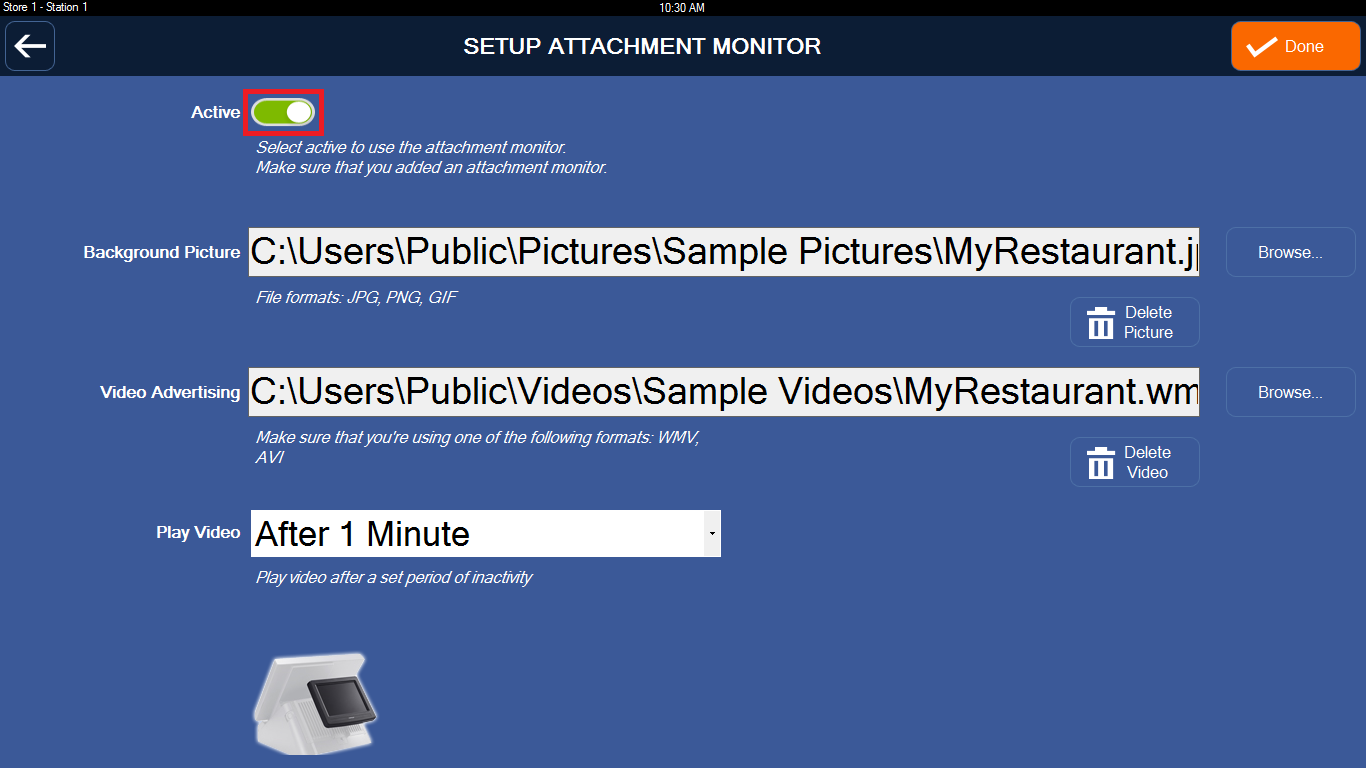

Home Screen => Admin Entry => Advanced Settings => Setup Attachment Monitor

Make sure that you added an attachment monitor.

E. How to setup Frozen Yogurt Scale (using COM port)

Home Screen => Admin Entry => Plugins Manager => Weight Scale

Put the item on top of the scale and view the device, make sure weight value does not zero. Then press Verify.

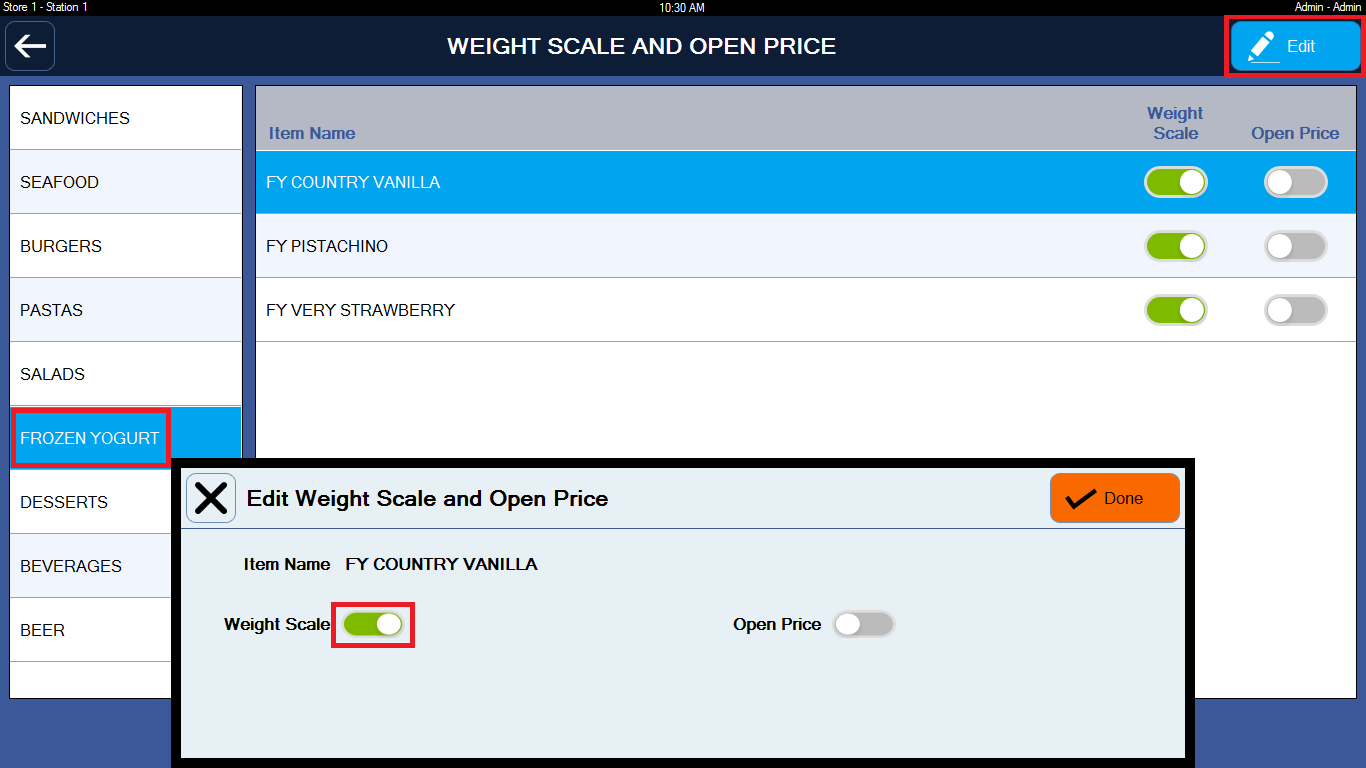

Home Screen => Menu Entry => Weight Scale and Open Price

Add items that you would like to weigh to the order.
